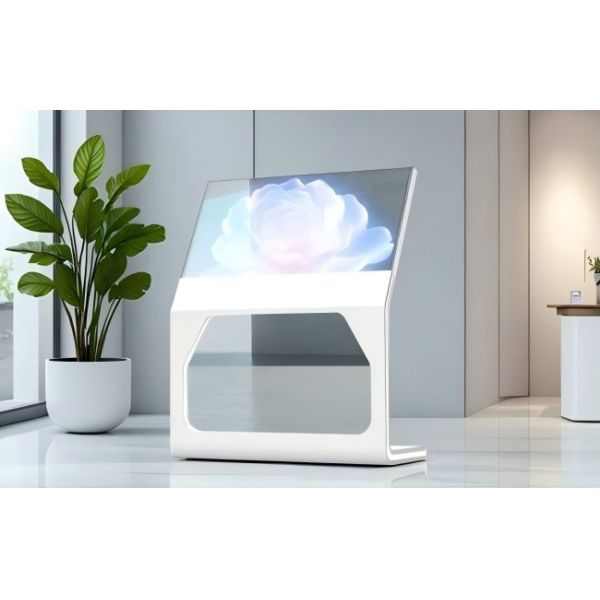

55-inch Transparent OLED Slanted Display (Transparent Screen) — Key Features: This slanted transparent OLED display integrates display, touch, and control functionalities; it is user-friendly and designed to enhance operational efficiency.
Usability: Featuring a novel and stylish design, this slanted transparent OLED screen is built to minimize the risk of damage during daily use. It is capable of continuous, long-duration operation, offering exceptional durability and usability.
Ease of Operation: The display features a clean and intuitive user interface that allows for effortless operation. It supports a wide range of touch gestures, making it both convenient and practical to use.
Applications: Widely utilized in a diverse array of settings, including commemorative halls, museums, cultural exhibition centers, archives, science and technology museums, corporate showrooms, bookstores, tourism exhibition zones, various themed pavilions, real estate showrooms, school history halls, intangible cultural heritage centers, digital automotive showrooms, digital airport terminals, and digital avatar applications.
| 55-Inch Transparent OLED Display (Reclined Model) |
| LCD Panel Parameters |
| Screen Size |
55 inch |
| Panel type |
OLED |
| transmittance |
43% |
| Max Resolution |
1920x1080(FHD) |
| Aspect Ratio |
16:9 |
| Brightness |
200-600cd/㎡ |
| Contrast Ratio |
200000:1 |
| Viewing angle(up/down/left/right) |
R/L 120(min) U/D 120(min) |
|
| Response Time |
0.1ms(Gray To Gray) |
| Display color |
10bit(R),1.07 billon colors |
|
| Onboard interface |
| port |
HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
|
| Touch Method |
| Capacitive Touch screen(Optional) |
Default 10 points Capacitive Touch |
| Power Specifications |
| Power supply |
100-240V~, 50/60Hz |
|
| Total System Power Consumption |
≈85W System Not Included |
|
| Machine Operating Parameters |
| running time |
7*12h |
| Screen life |
30000h |
| Operating temperature |
0℃~40℃ |
| working humidity |
20%~80% |
| structure |
| Material |
Aluminum+Tempered Glass+Metal |
| external dimensions |

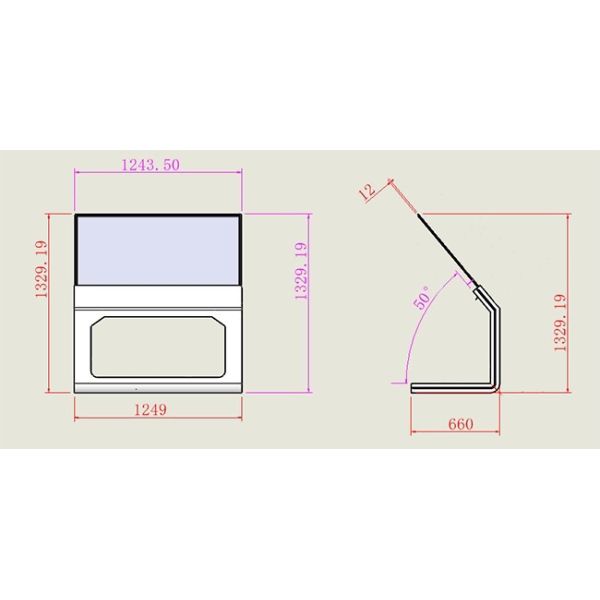

1249*1329.19*660mm Refer to the structural dimension drawings. |
| Package size |

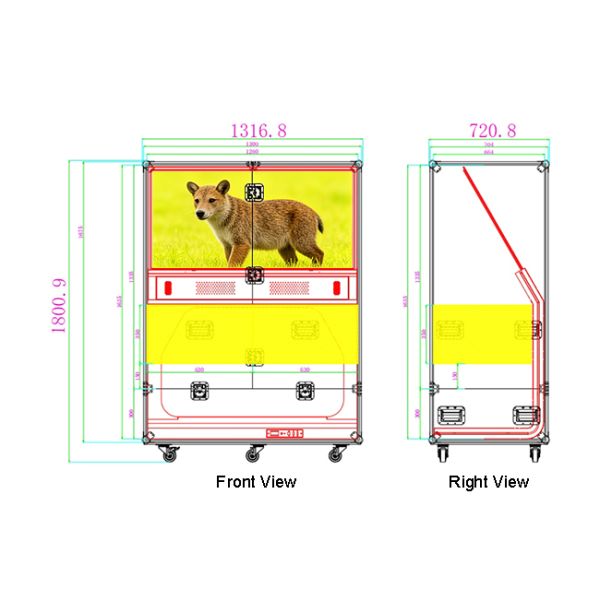

Air box 1800.9*1316.8*720.8MM |
|
| Installation Method |
Base Installation |
| Net weight |
65KG/160KG |
| Accessories |
| Power Cord,Remote Control |
| other |
| After-Sales Service |
1-Year Warranty |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
